Flat Glass Square Rooflight 500x500mm to 1100x1100mm - Double Glazed, Kerb

Rubber Roof UKSKU: WS-EM-ECO-WKS-1

Internal Size (W x L): 500 x 500mmSizes are the membrane size. Each kit fits a roof deck up to 150mm smaller on every side.
Ventilation: None
Upstand: 150mm Vertical UPVC Kerb
Price
Sale price£1,087.32 (Inc. VAT)
£1,087.32 inc. VAT
£906.10 ex. VAT
  • Free UK delivery
  • Dispatched within one working day
  • Tracked courier, 1–3 working days
Stock
Re-stocking soon
Not sure of your size? WhatsApp us a photo and we confirm the right kit before you order.
Not sure what you need? Ask us first. UK-based team. Send a photo and your measurements and we will confirm the right products before you pay.
  • Free UK deliveryEvery order, no minimum spend
  • Dispatched within one working dayTracked courier, 1–3 working days
  • Secure checkoutAll major cards, Apple Pay, Google Pay and Shop Pay
  • Free fitting guidesInstallation manual and phone support mid-job

Description

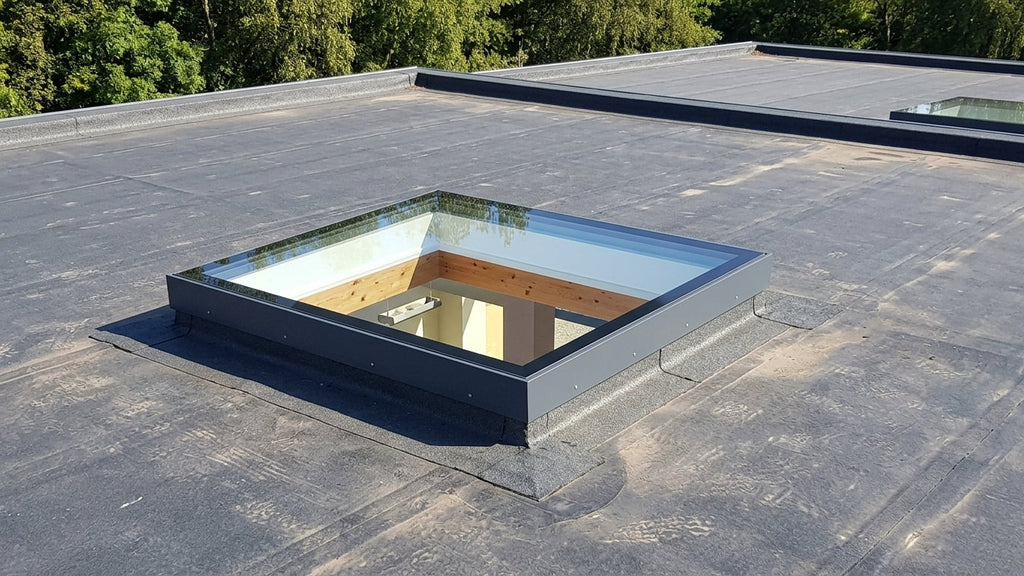

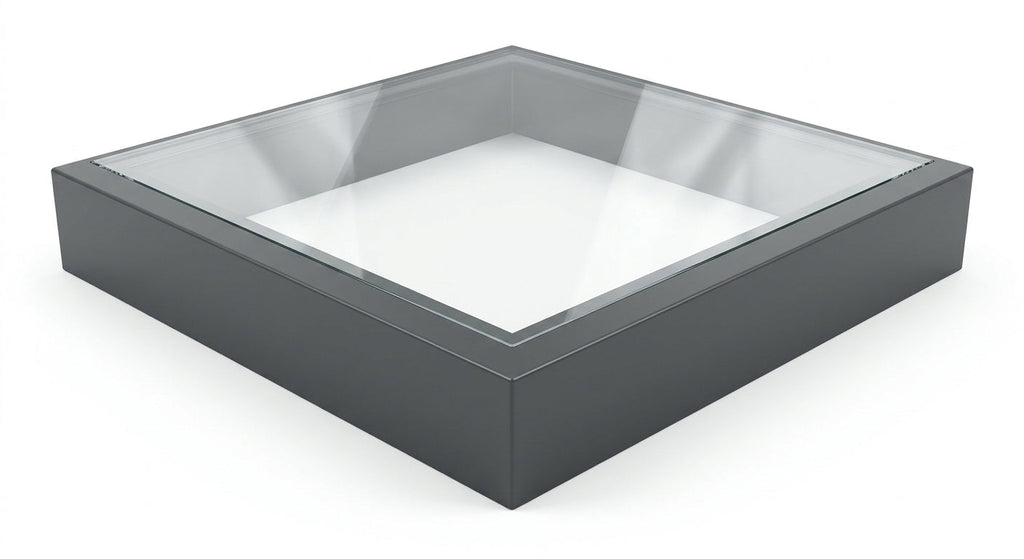

Square flat glass rooflight supplied complete with a 150mm kerb.

A flush, contemporary glass rooflight for flat roofs, delivered with the kerb included so the opening can be finished in one visit. The thermally broken aluminium frame and double glazed unit keep heat in, while the slim sightlines keep the focus on the sky rather than the frame.

Key Features

  • Kerb supplied with the unit, in insulated timber or vertical uPVC
  • Thermally broken frame to limit heat loss and cold bridging
  • Toughened outer and laminated inner panes for safety overhead
  • Fixed, trickle vented, manually opening or electrically opening
  • Frame finished in anthracite grey, or any standard RAL colour

Specifications

  • Shape: Square
  • Internal sizes: 500x500mm, 650x650mm, 800x800mm, 900x900mm, 1000x1000mm and 1100x1100mm
  • Glazing: Double glazed, toughened outer pane with a laminated inner pane
  • Cavity: Argon filled with a warm-edge spacer
  • Frame: Thermally broken aluminium box section
  • External frame colour: RAL 7016 anthracite grey, or any standard RAL colour
  • Kerb: 150mm insulated timber sloping kerb or 150mm vertical uPVC kerb
  • Ventilation: None, manual trickle vent or manual opening
  • Ud-value: 1.3 W/m²K, glass unit tested vertically
  • Standard frit width: 84mm
  • Recommended install pitch: 5° to 15° on the upstand
  • Non-fragility: CWCT TN66/67 Class 3
  • Air tightness: Class 4 at 300 Pa to BS 6375-1:2015 and BS EN 12207
  • Wind loading: Class A3 to BS 6375-1:2015 and BS EN 12210

Applications

  • Flat roof extensions and garden rooms
  • Kitchens and open-plan living spaces
  • Hallways, landings and stairwells
  • Offices and commercial fit-outs
  • New build and refurbishment projects
