Description

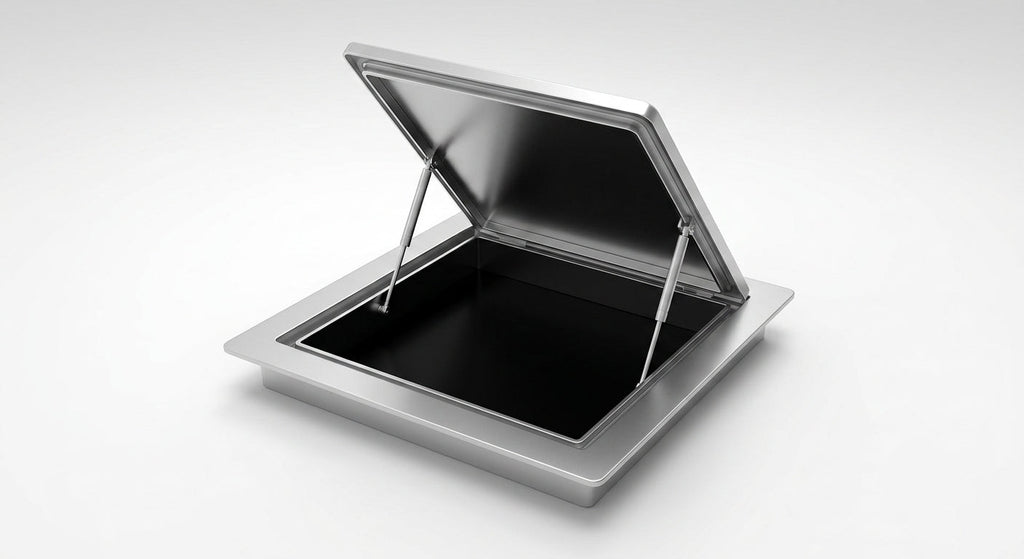

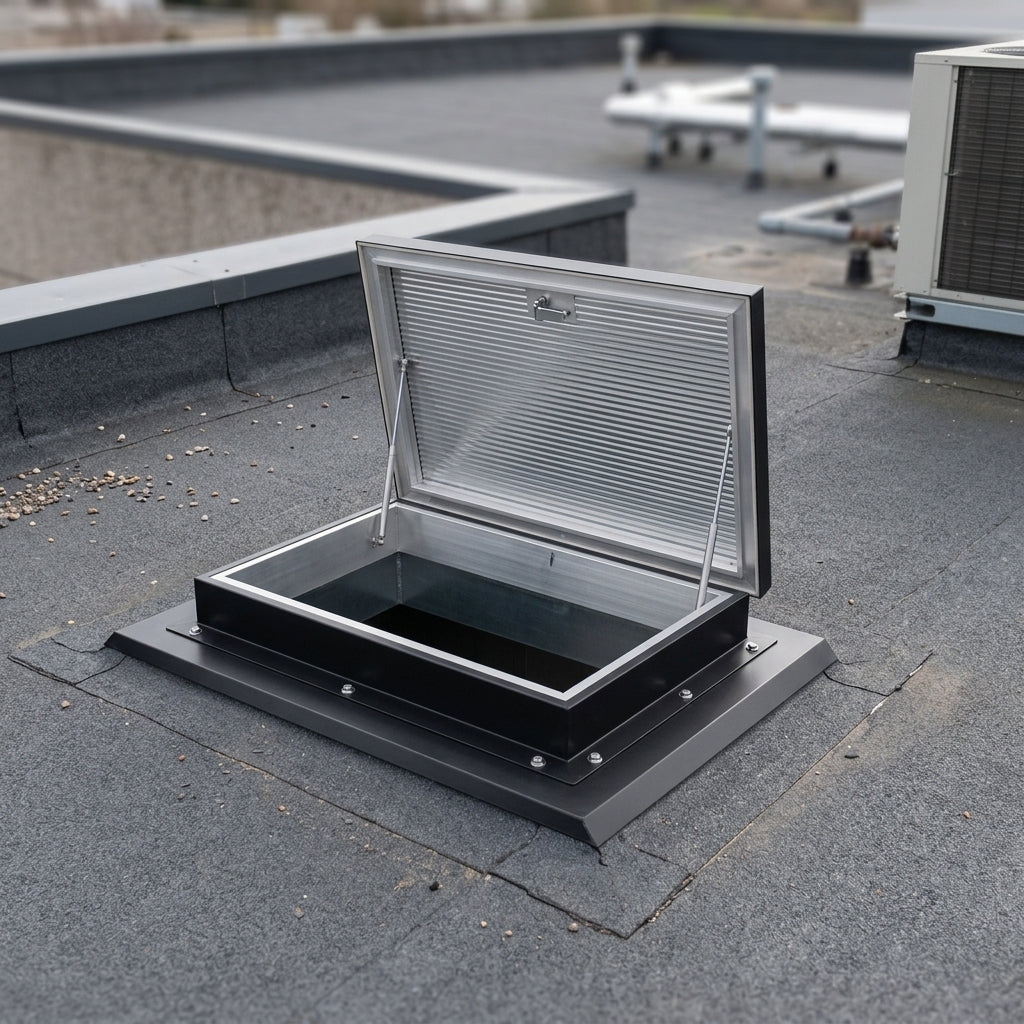

An electrically operated square access hatch for safe roof access.
This hatch gives a secure, weathertight route onto a flat or low-pitch roof, which makes it equally suited to routine maintenance and to an escape route. It is made to order in a range of sizes, comes with a hard-wearing mill finish, and can be specified with several different cover build-ups.
Key Features
- Electric operation lifts the cover without the effort of a manual hatch
- Made to order, so the opening can be matched to the structure
- Choice of cover build-up to suit the thermal target for the roof
- Splayed upstand sheds water away from the opening
- Tested for watertightness and impact resistance for peace of mind
Specifications
- Type: hatch cover, upstand and access mechanism supplied as one assembly
- Shape: square or rectangular
- Internal sizes: 1200 x 1200 mm, 1250 x 1250 mm, 1300 x 1300 mm, 1400 x 1400 mm, 1500 x 1500 mm and 1600 x 1600 mm
- Finish: mill finish aluminium
- Cover options: solid insulated cover, double skin or triple skin polycarbonate glazing
- Upstand: splayed, 300 mm high
- Operation and ventilation: electric opening for access
- Thermal performance in W/m²K: double glazed polycarbonate 2.68, triple glazed polycarbonate 1.78, 40 mm solid insulated cover 0.80, 150 mm splayed PVC upstand 0.90, 150 mm vertical PVC upstand 1.00 and 300 mm splayed PVC upstand 1.00
- Sound reduction: 28 dB
- Fire performance: B-s3, d0 internally and BROOF (t4) externally, both to EN 13501-1
- Service temperature: -50°C to +120°C
- Testing: passes watertightness to EN 1873, 1200 J impact to EN 1873, and Class B impact to ACR (M) 001:2005
Applications
- Roof maintenance access
- Emergency escape routes
- Building services access
- Ventilation access points
