Description

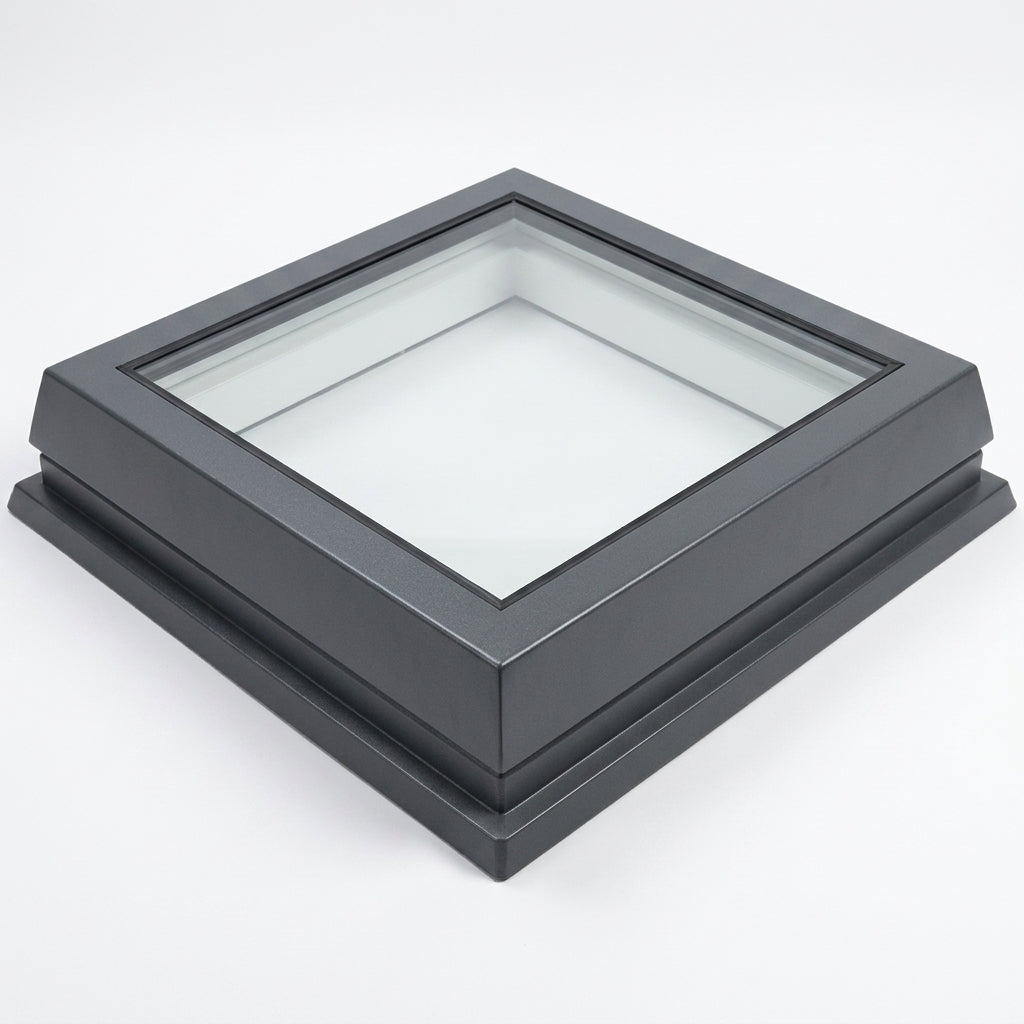

A tested, high-performance flat glass rooflight supplied as glazing only.

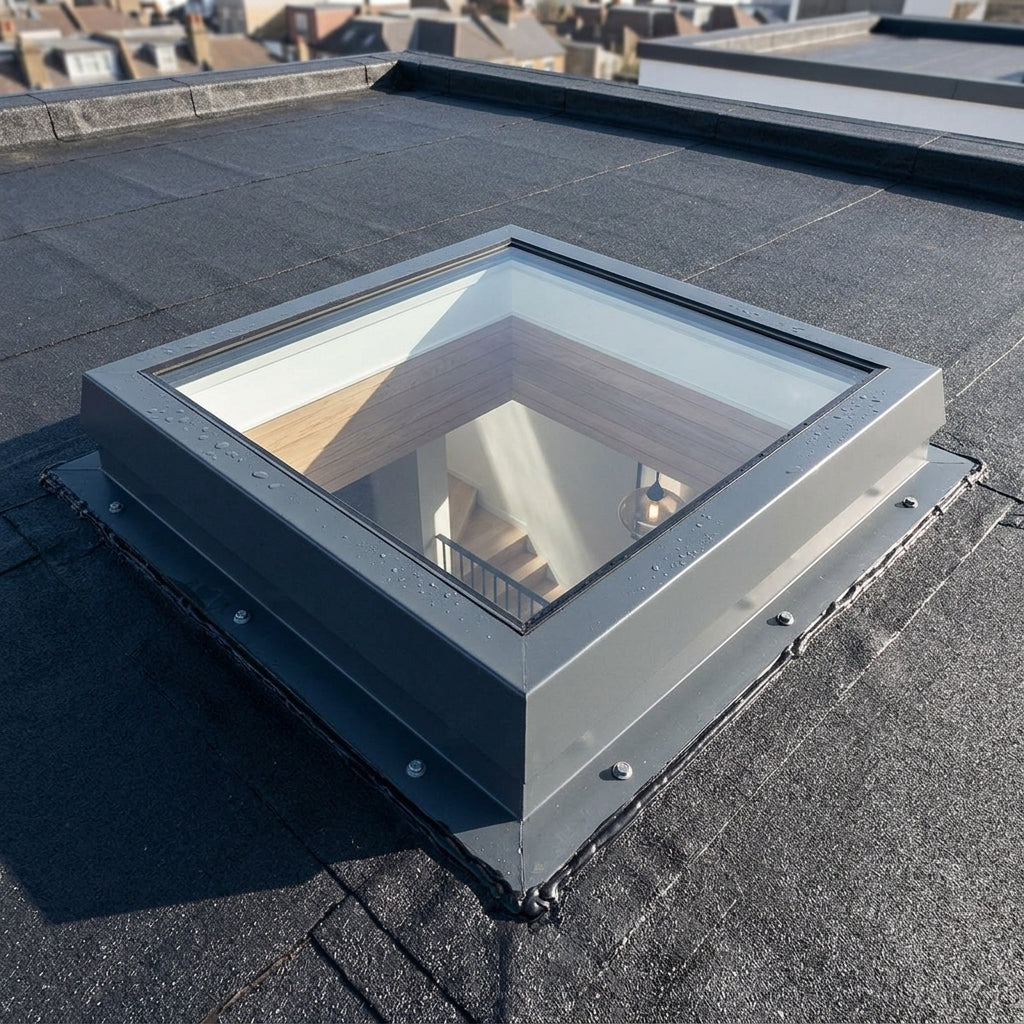

Designed to sit on a builder's upstand, this rooflight suits both new build and refurbishment work where the kerb is formed on site. The double glazed unit combines a toughened outer pane with a laminated inner one, and the whole assembly has been tested for thermal performance, weather tightness, fire behaviour and non-fragility, so it stands up to scrutiny on a specified project.
Key Features
- Laminated inner pane for safety and added security
- Independently tested for weather tightness and non-fragility
- Supplied as glazing only, ready for a kerb built on site
- Wide range of sizes to suit most openings
Specifications
- External kerb sizes: 14 options, from 600 x 600 mm up to 2300 x 1300 mm
- Glazing: double glazed, with a 6 mm toughened outer pane and an 8 mm laminated inner pane
- Combined unit U-value: 1.26 W/m²K
- Light transmittance: 76%
- Fire performance: Class B-s2, d0 when tested to EN 1873
- Non-fragility: impact tested to CWCT Class 1
- Weather tightness: pass
- Shape: square or rectangular
- Operation: fixed, non-opening, with no ventilation
- External colour: RAL 9010 white or RAL 7016 anthracite grey, both with a white internal frame
- Roof pitch: 5° to 15°
- Minimum kerb height: 150 mm, kerb not supplied
Applications
- Residential and commercial buildings
- Extensions and loft conversions
- Refurbishment projects
- Rooms that rely on overhead daylight
