Description

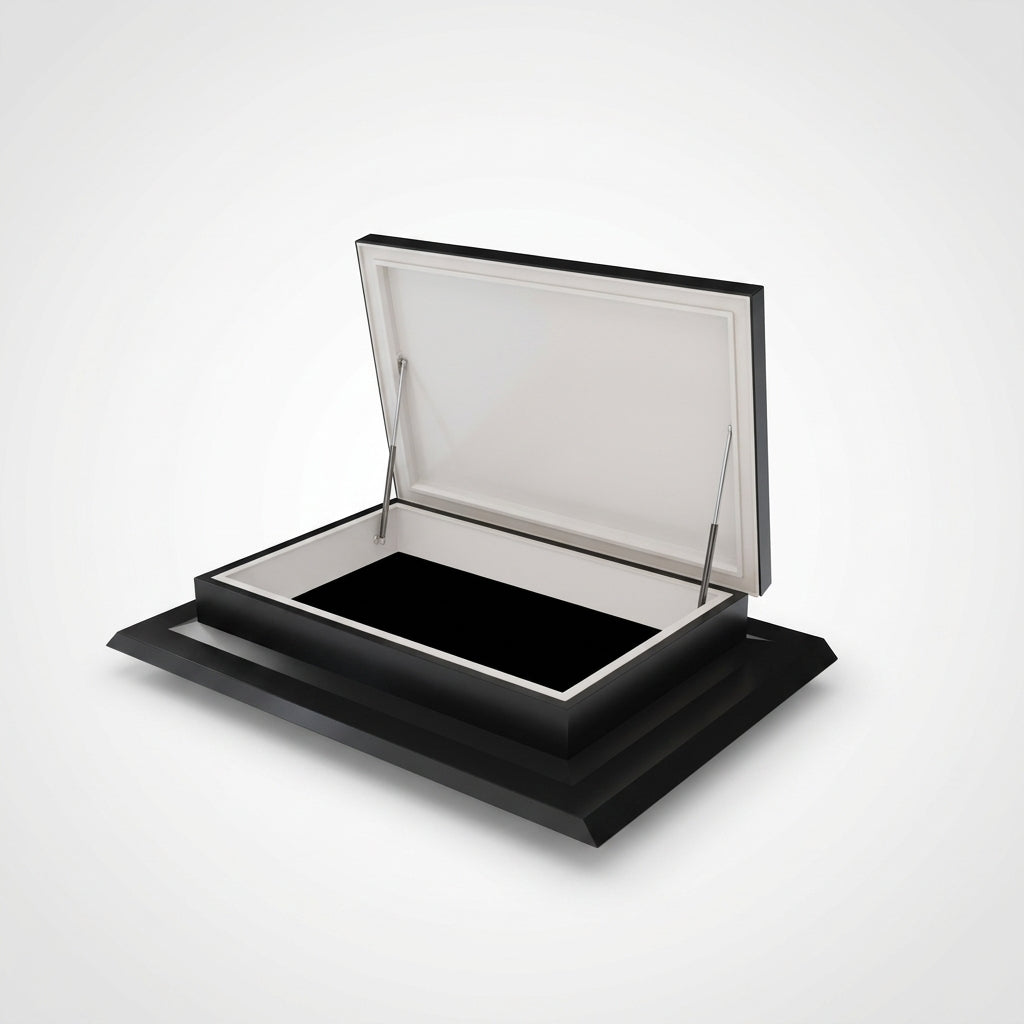

Manual rectangular access hatch for safe roof access.
This hatch provides dependable entry to and from a roof, whether for maintenance or as part of an escape route. It is built around a 150mm vertical collar, which suits openings where a splayed upstand would take up too much roof area, and a broad range of rectangular sizes is available.
Key Features
- Manual operation that is quick to learn and needs no power supply
- Vertical collar keeps the footprint tight where roof space is limited
- Compact size range that suits narrower openings and stair heads
- Hard-wearing mill finish that needs no decoration or upkeep
- Light enough to handle and set out without lifting plant
Specifications
- Shape: Rectangular, with square options also available
- Internal sizes: 400 x 700mm, 400 x 1000mm, 500 x 800mm, 500 x 1100mm, 600 x 1200mm, 700 x 1300mm, 700 x 1600mm and 800 x 1300mm
- Cover options: Solid insulated cover, double skin or triple skin polycarbonate
- Upstand: Vertical collar, 150mm high
- Operation and ventilation: Manual opening for access
- Thermal performance (U-value): Double glazed polycarbonate 2.68 W/m²K, triple glazed polycarbonate 1.78 W/m²K, 40mm solid insulated cover 0.80 W/m²K
- Upstand thermal performance: 150mm vertical 1.00 W/m²K, 150mm splayed 0.90 W/m²K, 300mm splayed 1.00 W/m²K
- Fire performance to EN 13501-1: B-s3, d0 internally and BROOF (t4) externally
- Service temperature range: -50°C to +120°C
- Sound reduction: 28 dB
- Supplied as: Cover, upstand and access hatch mechanism
- Testing: Passes watertightness to EN 1873, 1200J impact to EN 1873 and Class B impact to ACR[M]001:2005
Applications
- Roof access for maintenance
- Emergency escape routes
- Access to flat or pitched roofs
- Installation in residential buildings
