Description

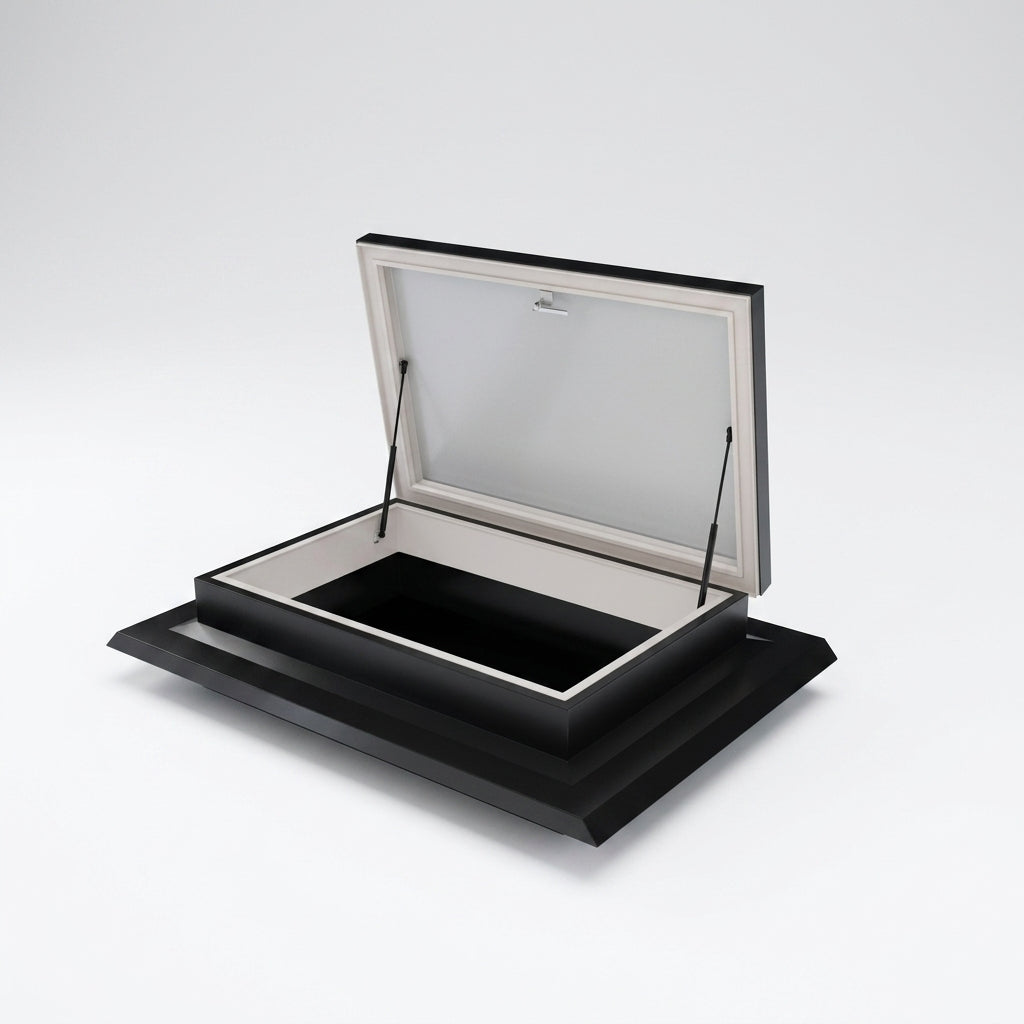

Manual rectangular access hatch for everyday roof access.

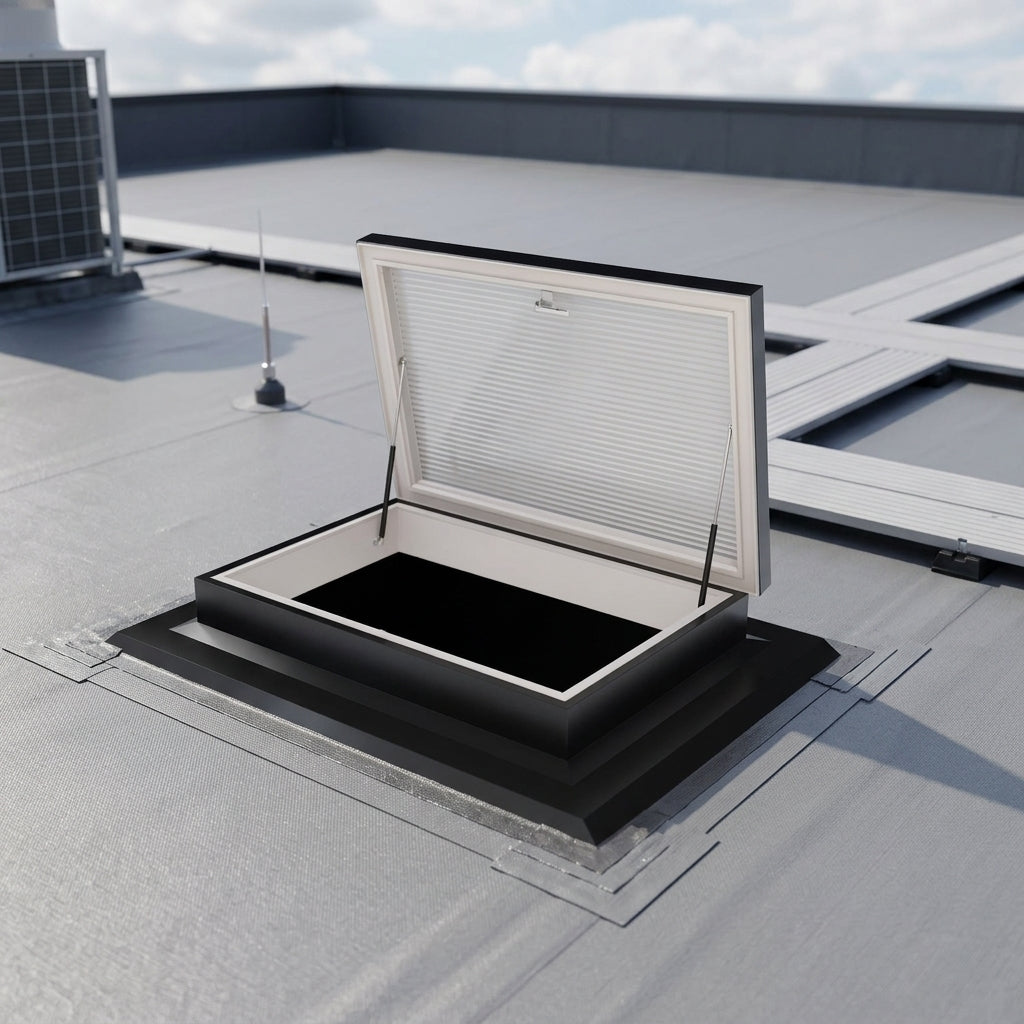

This access hatch gives safe entry and exit to a roof area, whether for maintenance visits or as part of an escape route. The 150mm splayed upstand sheds water away from the opening while keeping the step-up modest, and the mill finish holds up well in exposed positions.
Key Features
- Manual operation, so there is nothing to wire in or power
- Splayed upstand sheds rainwater clear of the opening
- Broad range of rectangular openings to suit an existing kerb
- Robust construction built for repeated use over many years
- Suits flat roofs and low-pitch applications
Specifications
- Shape: Rectangular, with square options also available
- Internal sizes: Ten options, from 600 x 900mm up to 900 x 1800mm
- Cover options: Solid insulated cover, double skin or triple skin polycarbonate
- Upstand: Splayed, 150mm high
- Operation and ventilation: Manual opening for access
- Thermal performance (U-value): Double glazed polycarbonate 2.68 W/m²K, triple glazed polycarbonate 1.78 W/m²K, 40mm solid insulated cover 0.80 W/m²K
- Upstand thermal performance: 150mm splayed 0.90 W/m²K, 150mm vertical 1.00 W/m²K, 300mm splayed 1.00 W/m²K
- Fire performance to EN 13501-1: B-s3, d0 internally and BROOF (t4) externally
- Service temperature range: -50°C to +120°C
- Sound reduction: 28 dB
- Supplied as: Cover, upstand and access hatch mechanism
- Testing: Passes watertightness to EN 1873, 1200J impact to EN 1873 and Class B impact to ACR[M]001:2005
Applications
- Roof access for maintenance
- Emergency escape routes
- Access to rooftop equipment
- Residential and commercial buildings
