Description

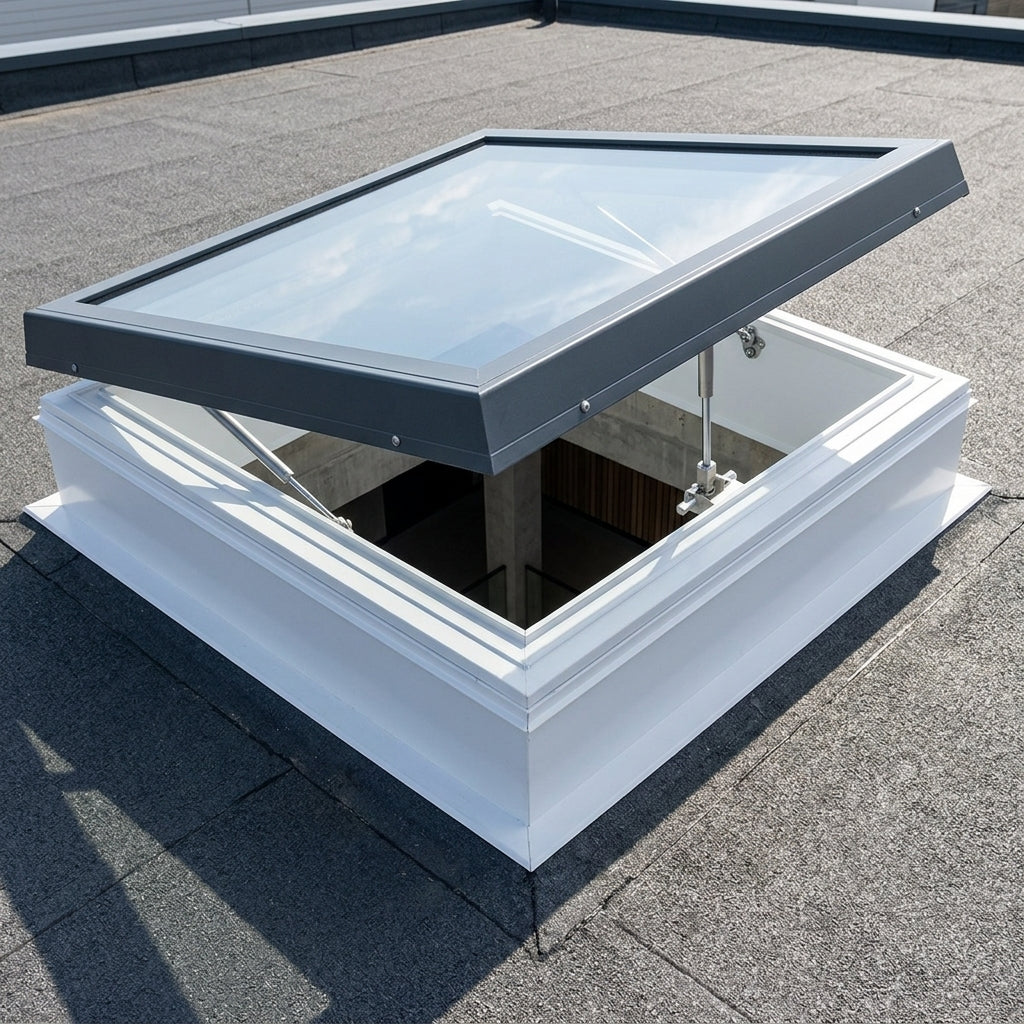

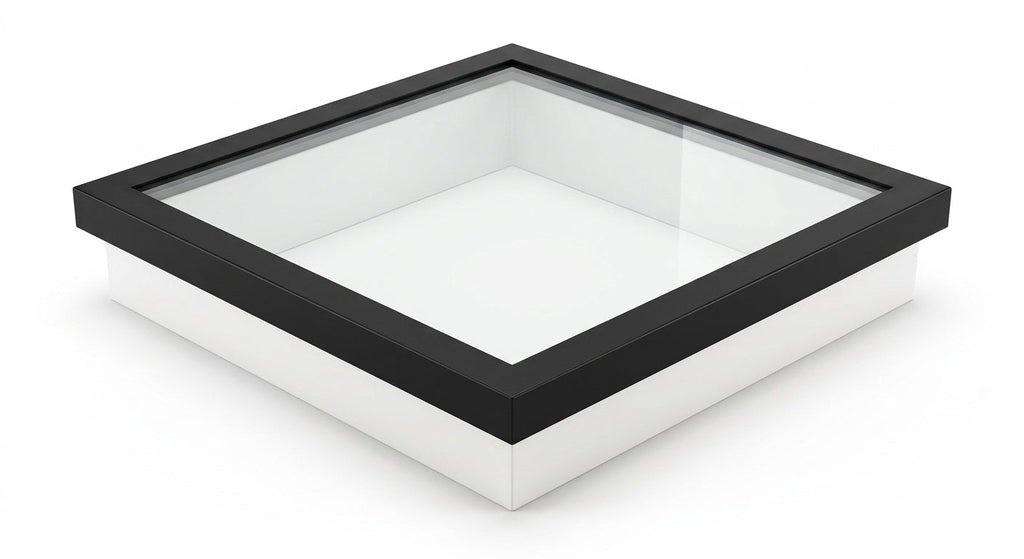

Modern opening flat glass rooflight with an insulated upstand.
This opening flat glass rooflight brings daylight and fresh air into a room in one unit, and the insulated upstand comes ready fitted so the thermal detail at the kerb is taken care of. It suits new build and refurbishment work equally well, and the choice of manual or electric operation means it can be specified to sit within easy reach or well above head height.
Key Features
- Opens for genuine ventilation rather than daylight alone
- Choice of manual or electric operation to suit the height of the opening
- Insulated upstand supplied with the unit, so the kerb detail is resolved
- Laminated inner pane for added security and reduced fading of furnishings
- Two external colours to match either a light or a dark roof finish
Specifications
- Product type: Opening flat glass rooflight
- Glazing: Double glazed, 6mm toughened outer pane with an 8mm laminated inner pane
- Thermal performance: Combined unit U-value of 1.26 W/m²K
- Light transmittance: 76%
- Non-fragility: Impact tested to CWCT Class 1
- Weather tightness: Pass
- Fire rating tested to EN 1873: Class B–s2, d0
- Operation and ventilation: Manual or electric opening, or a fixed non-opening version
- External colour: RAL 7016 anthracite grey or RAL 9010 white, with a white internal frame
- Frame material: Aluminium with glass glazing
- Upstand: 150mm vertical, supplied with the unit
- Shape: Square or rectangular
- Internal sizes: Fourteen options, from 500 x 500mm up to 2200 x 1200mm
- Recommended installation angle: 5 to 15 degrees
Applications
- Residential and commercial buildings
- Extensions and loft conversions
- Refurbishments that need more natural light
- Rooms that need better ventilation
