Description

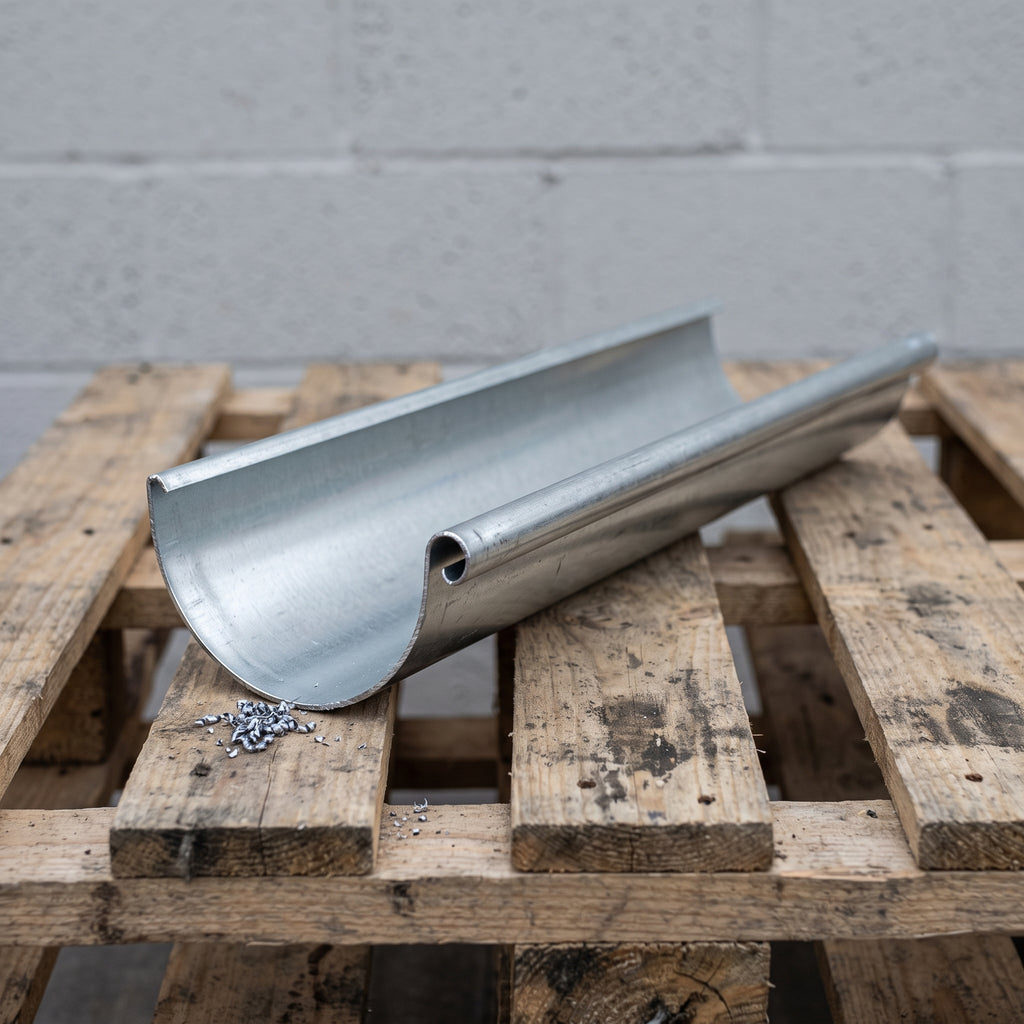

Most gutter ranges are built for a semi-detached roof and a modest amount of rainfall. A 30-metre run on a livestock barn or a steel-clad workshop asks for something with more wall thickness and a bigger internal channel — which is exactly the gap this system fills. It's a genuine 150mm half-round galvanised steel profile, sized for the water volumes that come off a large agricultural or industrial roof span, not a domestic aluminium gutter pressed into a job it was never specified for.

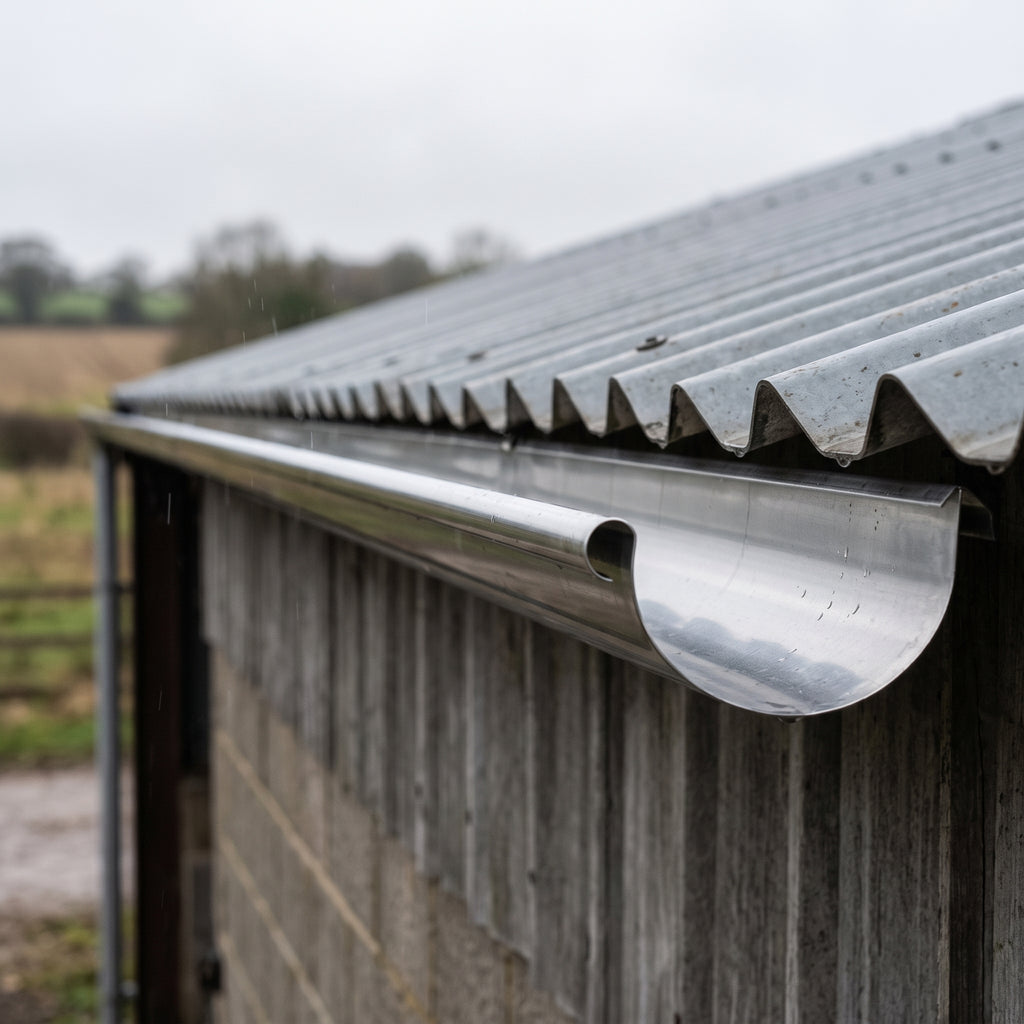

Galvanised steel earns its place on farm buildings, grain stores, riding arenas and steel-portal-frame units because it shrugs off knocks from ladders, feed trailers and livestock in a way that thin-wall plastic and even aluminium can struggle with, while the zinc coating protects the steel against corrosion in exposed rural sites. It pairs naturally with the profiled steel and fibre cement sheeting most of these buildings are already roofed in.
What's in the system
Buy exactly what the run needs: 3-metre gutter lengths, a matching 3-metre 100mm downpipe, a 150mm-to-100mm outlet to join them, a 90° corner for a change of direction, and a stop end to close off a run. Order the quantities of each you need for the building's perimeter and downpipe count. For roofs needing higher water-carrying capacity, see our deeper Agricultural Steel Box Gutter System instead.
| Component | Size | Material | Length |
|---|---|---|---|
| Gutter length | 150mm half round (internal width) | Galvanised steel, 0.7mm | 3m |
| Downpipe length | 100mm diameter | Galvanised steel | 3m |
| Gutter outlet | 150mm gutter to 100mm downpipe | Galvanised steel | — |
| 90° corner | 150mm | Galvanised steel | — |
| Stop end | 150mm, universal | Galvanised steel | — |
Installation notes
Gutter lengths join with a push/clip-fit connection system — no welding or sealant needed at the joints. Fix with fascia or rafter brackets at roughly 800mm centres (brackets are a standard roofline fixing, sold separately). Falls should run to the downpipe outlet at the manufacturer's recommended minimum gradient for a run of this length; on long agricultural runs, plan for a downpipe roughly every 15–18m of gutter to keep up with peak rainfall volumes.
FAQ
Will this fit my existing aluminium or uPVC brackets?
No — this is a genuine 150mm half-round steel profile and needs brackets sized and rated for it. Use steel-compatible fascia or rafter brackets at 800mm centres.
Can I mix this with the store's aluminium or cast iron guttering ranges?
Not on the same run — each material has its own profile and jointing system. It's a good choice, though, where you're roofing a separate agricultural or industrial building in the same style as our Box Profile Steel Roofing Sheets or Fibre Cement Big 6 Roofing Sheets.
Does the coating protect against rust?
Yes — the steel carries a galvanised zinc coating for corrosion protection, the standard finish specified for agricultural and industrial guttering. Avoid contact with fresh, uncured concrete or cement, which can attack the zinc coating during installation.
How many downpipes does a typical building need?
As a rule of thumb, plan one 100mm downpipe roughly every 15–18 linear metres of gutter run, more on steeper or larger roof spans — a groundworker or the building's structural engineer can confirm exact numbers for high-rainfall areas.
Is this the same product as your aluminium half round guttering?
No — it's a different material and a different (150mm) profile size to our 125mm Aluminium Half Round Gutter System, chosen specifically for the higher flow rates and knock-resistance agricultural and industrial buildings need.
Need help specifying a full run for a farm building, workshop or barn conversion? Get in touch before ordering and we'll help you work out lengths, downpipe counts and fittings.
